Flip/Flash Cards (3.21)

Location: Screen Styles (Question and Instruction Screens) > Instruction Screen Styles > Instruction Screen Style Descriptions > Interactive Screen Styles > Flip/Flash Cards (3.21)

Thumbnail

Description

LCMS_U~1_Img1617

3.21 Flip/Flash Cards. Click-to-reveal text and/or media (png, jpg, gif, mp4, and HTML) flip cards. Up to 25 cards presented in a definable columns and rows format (maximum of 5 columns and rows). When clicked the card flips over to presents the media or text depending on the default selected. Allows selection between these layouts: "40% Text, 60% Card", "50% Text, 50% Card", "60% Text, 40% Card", "No Text, 100% Card". Note: This screen-style is not compatible with IE11.

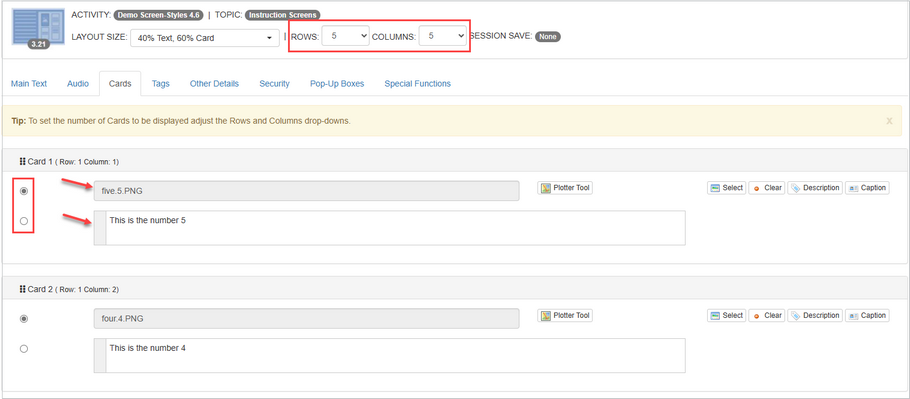

In addition to the standard fields, including Main Text, this screen has a Cards tab to add the media file for each card.

1.	Click the Rows or Columns drop-down menu button to add additional cards (can include up to 25).

2.	Click the Select button to add the desired media from the Media Library. See Add Individual Media for more information. Note: The media filename will display in the input field.

3.	Click the Set as default view radio button next to the media filename to display the card with the image side up. Note: The Plotter Tool is available for each card. See Plotter Tool for more information.

4.	Enter the desired text in the input field below the media filename. Note: Click the Set as default view radio button next to this input field to display the card with the text side up.

5.	Click the Clear button to remove the media file name for the desired card.

6.	Add media descriptions using the Description button (click to open a separate Description window).

7.	Click the Caption button to open the Caption field. Note: The placement of the caption is dependent on the viewer selected for the activity. Hyperlinks, inline text and images may also be entered in the Caption field using the HTML editor.

8.	Use the drag-handles (top-left of field) to reorder the Card fields.

LCMS_U~1_img1618
